Sunlight Readable LCD Panel
>
|
|
| Place of Origin | China |
| Brand Name | Fengshi |
| Certification | FCC / CE/ROHS |
| Model Number | FS750 |

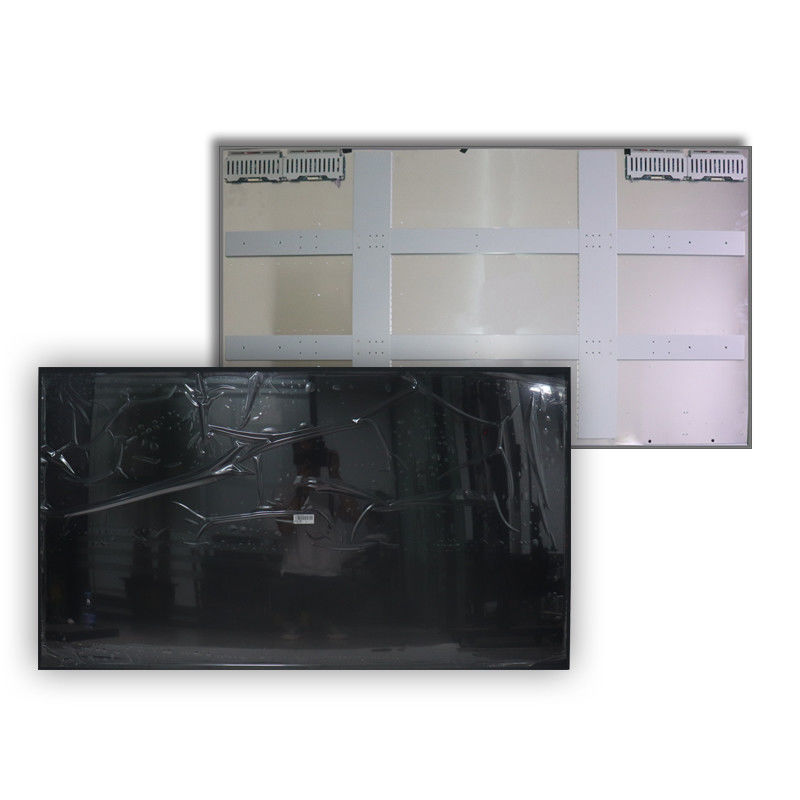

75inch Large Size Outdoor 3840*2160pixel Wall Mount Lcd Monitor
Sunlight Readable High Brightness LCD Panel
The FS750 is a 75-inch high brightness LCD panel, with brightness ratings up to
5000 Nits, glows in direct sunlight, making it an ideal solution for outdoor casings and
window facing applications.
◉ Products name:75' high brightness LCD panel
◉ Size:75 inch and custom size
◉ Brightness:700-5000nits
◉ Use:indoor/outdoor
◉ Display Area:1649.6*927.9mm
◉ Resolution:3840*2160pixel
◉ Driver Elements:a-Si TFT-LCD
High brightness outdoor lcd screen are perfectly fit for public transport and retail applicaitons.
Their slim body design will make them blend into any housing and make your on-screen
messaging standout. Their vivid and vibrant colours immerse viewers and will effectively provide
them with the information they are looking for.
75 Inch LCD Panel Parameter
|
Item
|
75' high brightness LCD panel
|
|
Model
|
FS750
|
|
Screen Size
|
75 inches
|
|
Display Area
|
1649.6*927.9mm
|
|
Outline Dimenssion
|
1675.2*953.6*54.6mm
|
|
Panel Type
|
High brightness LCD with WLED
|
|
Configuration
|
RGB Vertical Stripe
|
|
Resolution
|
3840*2160pixel
|
|
Brightness
|
700-5000nits
|
|
Aspect Ratio
|
16:9
|
|
Constrast Ratio
|
3000:1 (Typ.) (TM)
|
|
Response Time
|
20/5ms (Typ.)(Tr/Td)
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥20
|
|
Driver Elements
|
a-Si TFT-LCD
|
|
Surface Treatment
|
Antiglare (Haze 25%), Hard coating (3H)
|
|
Display Color
|
16.7M 72% (CIE1931)
|
|
Display Mode
|
MVA, Normally Black, Transmissive
|
|
Interface Type
|
30 pins LVDS (2 ch, 8-bit) , Connector
|
|
Input Voltage
|
DC12V
|
|
Power
|
36.2W
|
|
Weight
|
27.6KG
|
|
Backlit Lifetime
|
50000hrs
|
|
Operating Temp.
|
0°- 60°C
|
|
Storage Temp.
|
-20°- 60°C
|
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in outdoor LCD panel/LCM since 2016
located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your
requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays:LCD Panel+PSU+AD board(optional interface, eg:HDMI, VGA,
DVI, USB...)+Touch optional.
(3) Window Facing Displays:LCD Panel+PSU+AD board (network board optional)+fan system
+temperature control board+housing.
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A:Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each outdoor lcd
screen display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Outdoor lcd screen sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped with 2 weeks.
