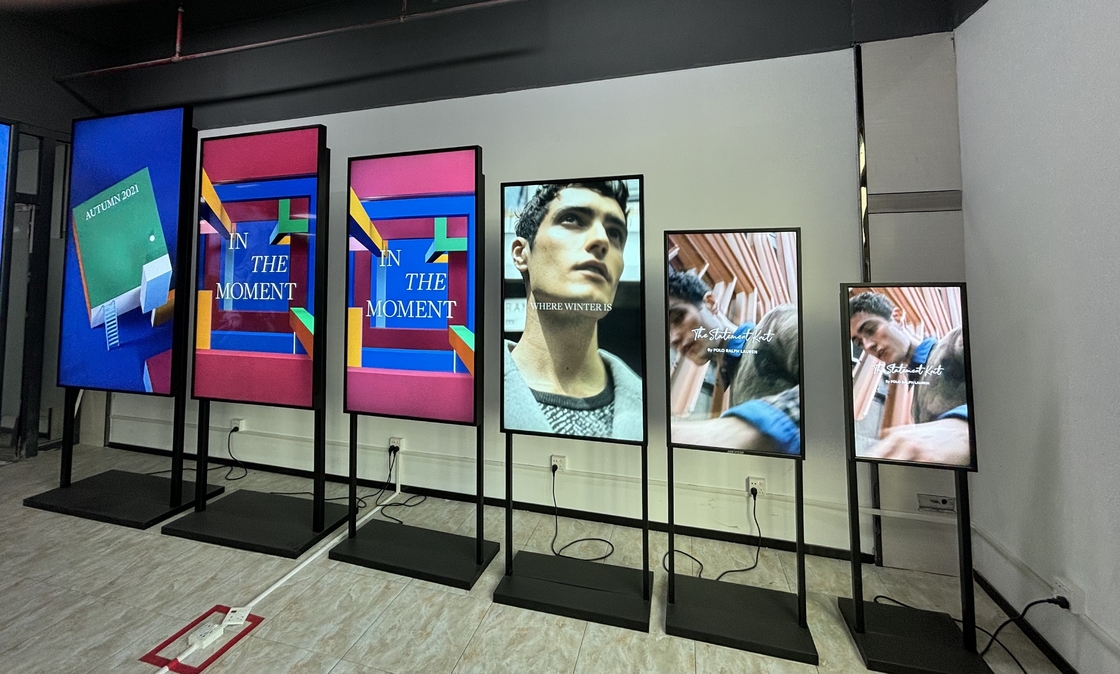

43inch High-Brightness 2500nits Window Facing Display with IPS Panel
Product Specifications
| Product Name | High-Brightness Window Facing Display |
| Size | 43inch |
| Brightness | 2500nits |
| Panel technology | IPS, RGB |
| Display ratio | 16:9 |
| Resolution | 1920*1080 |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 178/178 (Typ.)(CR≥20) |
| Display mode | Landscape/Portrait |
| Warranty | 18 months |
Key Features
High Brightness
LCD backlight brightness 2500nits. Meets the best viewing requirements under direct sunlight.
Industrial Grade LCD
The LCD panel is high Tni 110 degree with wide temperature. It doesn't turn black under direct sunlight.
Polarized Sunglasses Visible
LCD panel uses QWP technology to improve visibility. Wearing polarized sunglasses doesn't affect effect.
Low Noise Design
Low noise design, especially suitable for window environment. Below 25dB, the sound is as quiet as in a recording studio.
Industrial Ultra-thin Design
Narrow frame, can be used for multiple screens. Ultra-thin, suitable for storefront info display. Brushed frame, more fashionable appearance.
Smart Brightness Control
The auto brightness sensor adjusts backlight brightness according to the ambient brightness to save power energy and protect the human eye.
Detailed Specifications
| Specifications | FSHD430-D25-PD |
| PANEL |
| Screen Size | 43" |
| Panel Technology | IPS, RGB |
| Aspect Ratio | 16:9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 2,500 cd/m2 |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Haze 3% |
| Lifetime | 50,000 Hrs Min. |
| Operation Hours | 7*24 Hrs |
| Orientation | Landscape & Portrait |
| MAINBOARD |
| Spec | 3288 2+16GB or 3568 2+16GB |
| Interface | HDMI-in*1/ USB*1/ RJ45*1 DC12V |
| PHYSICAL SPECIFICATION |
| Bezel Color | Black |
| Bezel Width | 18.0mm |
| Monitor Dimension (W x H x D) | 980.0 x 568.0 x 80.0 mm |
| Weight (Head) | 25.0 kg |
| Carton Dimensions (W x H x D) | 1,100 x 670 x 220 mm |
| Packed Weight | 28.0 kg |
| VESA™ Standard Mount Interface | 400 x 300 mm, 4 x M8 |
| ENVIRONMENTAL CONDITIONS |
| Operation Temperature | 0°C to 40°C |
| Operation Humidity | 10% to 85% |
| POWER |
| Input voltage | 180-264V~, 50/60Hz |
| Maximum power | 260W |
| ACCESSORIES |
| Optional | Mounting Bracket: wall mount, floor stand, roof hanging |
| WARRANTY |
| Warranty | 18 Month, Free spare parts, Technical support |
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in high brightness shop digital display LCD panel/LCM since 2016 located in Shenzhen.
Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18 months (Non-artificial damages) from the date of delivery on shop window LCD display.
Q: Do you provide ODM/OEM or customized service?
A: We're BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements. In order to support different customers, we are able to supply:
- High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
- Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI, USB...)+Touch optional
- Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+temperature control board+housing
- Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each shop digital display will pass through strict quality inspection.
Q: What certifications you have?
A: The CE-EMC Certificate of Conformity, ISO certification, FCC certification for shop digital display.
Q: What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black over 105 or 110℃.
Q: What is the MOQ?
A: Shop window LCD display sample testing is acceptable, the price is negotiable for bulk order.
Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3 days, bulk order shipped within 2 weeks.
