Outdoor Drive Thru Menu Boards
>
|
|
| Place of Origin | China |
| Brand Name | Fengshi |
| Certification | CE ROHS FCC CCC ISO9001 |
| Model Number | FSOD320 |

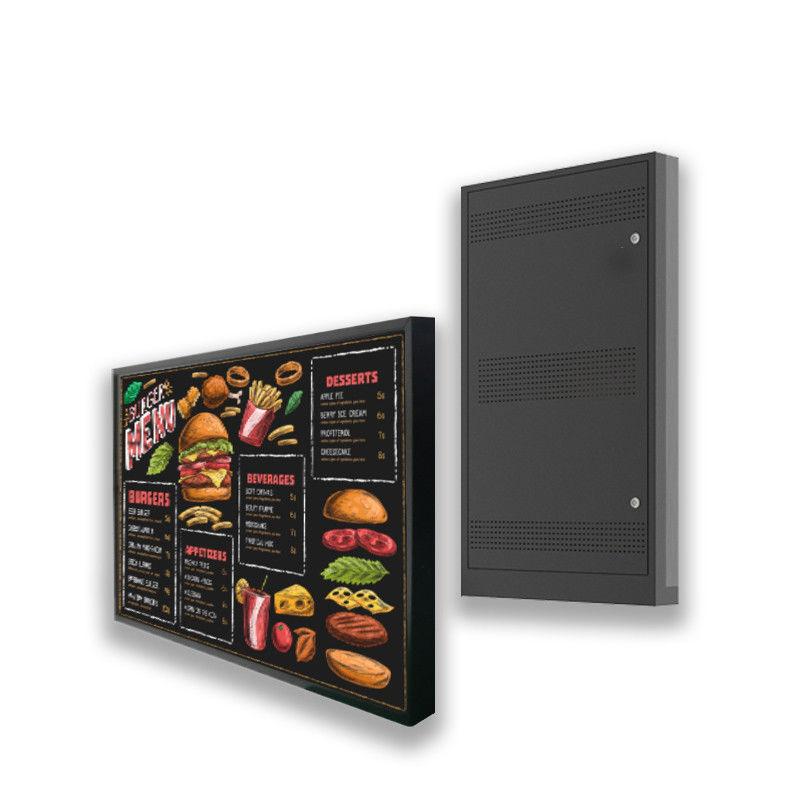

Outdoor Waterproof Restaurant Advertising Android Tft Lcd Display Digital Signage Screen
About 32inch outdoor Digital Signage Screen
Increase drive-thru sales and promote order efficiency with Fengshi's Outdoor Digital Menu Boards,
These all-weather rated, outdoor units offer a low operating cost, modular design, and an easy,
two-man installation process.
By making the switch to digital, with Fengshi's Outdoor Digital Menu Boards, you will no longer need
to manually update static menu content throughout the day. Instead, the digital content can be updated
remotely and in real-time, creating a seamless drive-thru experience for customers and a more
efficient restaurant.
◉ Easy integration for partner's customized design
Because the Fengshi's outdoor drive-through display screen is significantly thinner and lighter than
previous designsit is mount-ready and can be more easily customized for a variety of applications.
◉ Slim & Light Design
Fengshi's outdoor drive-through display screen composed of single display with a light and slim design
and itcan be easily customized to suit various exteral environments with no needfor separate casing.
◉ Bright & Brilliant
Fengshi's outdoor drive-through display screen possess powerful brightness of 3000 nits, providing clear
andvivid picture quality even under direct sunlight.
◉ Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allowsthe screen to be viewed
at virtually any angle.
◉ Energy-Efficient Performance
Through advanced thermal control functionality and a filter-freedesign, Fengshi's outdoor drive-through display
screen operate at reduced energy con -sumption. An integrated heat exchanger modifies signage resourc-es
depending on the environment, and ultimately cuts costs foroperators.
| Diagonal Size | 32 inch outdoor advertising lcd display |
| Resolution | 1920x1080 (16:9) |
| Pixel Pitch(mm) | 0.630 x 0.630 |
| Active Display Area(mm) | 698.4*392.8mm |
| Brightness(Typ.) | 3,000 cd/m2 |
| Contrast Ratio | 1,400:1 |
| Viewing Angle(H/V) | 178/178 |
| Display Colors | 8 bit - 16.7M |
| Color Gamut | 72% |
| Operation Hour | 7*24 |
| Haze | 2% |
| Dynamic C/R | 100,000:1 |
| Speaker Type | N/A |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), |
| 50/60 Hz | |
| Weight (kg) | 25.0kg |
| 40.0kg | |
| Protection Glass | 5mm |
| Bezel Width (mm) | Even 36.0mm |
| Operating Temperature | -30℃~ 50℃ |
| Humidity | 10~100% (Non-condensing) |
| IP Certificate | IP56 |
| Processor Coretex | Rockchip RK3288 Coretex A17 1.8GHz |
| Memory Interface | HYNIX DDR3 2GB |
| Storage | 8GB |
| Operating System | Android 7.1 |
| Multimedia Video Decoder |
MPEG-1/2/4, H.264, WMV,WKV,TS,FLV |
| JPEG, PNG, BMP, PNG,GIF | |
| MP3 |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of
delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI,
USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+tempera-
ture control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass
through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
Contact Us at Any Time
