Outdoor Drive Thru Menu Boards
>
|
|
| Place of Origin | China |
| Brand Name | Fengshi |
| Certification | CE ROHS FCC CCC ISO9001 |
| Model Number | FSOD490 |

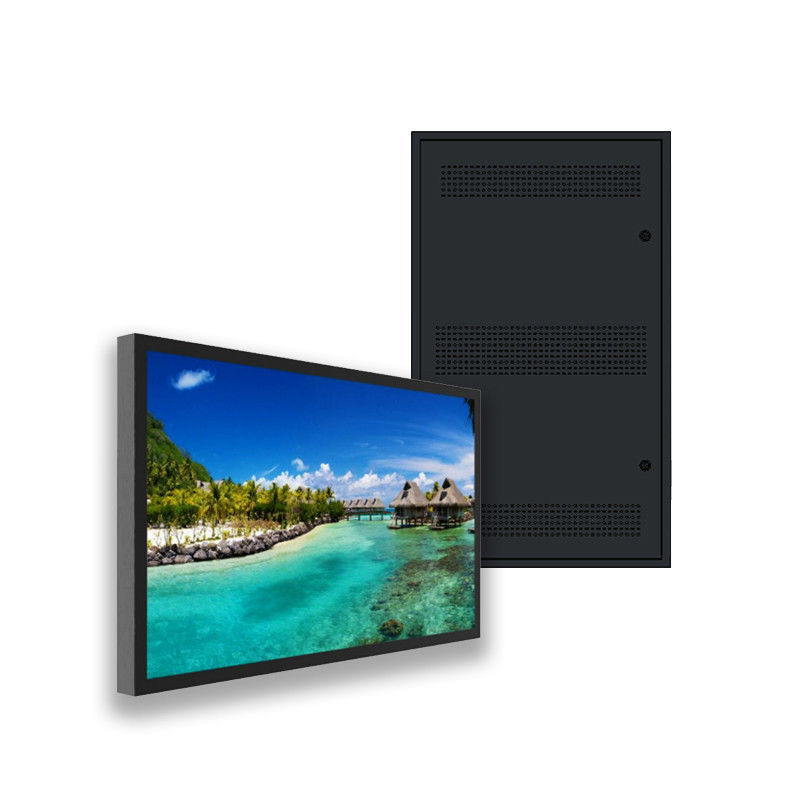

Outdoor Waterproof Fast Food Kiosk Lcd Digital Signage Advertising Panel Screen
About Outdoor Waterproof Digital Signage LCD Display
Increase drive-thru sales and promote order efficiency with Fengshi's Outdoor Digital Menu Boards,
These all-weather rated, outdoor units offer a low operating cost, modular design, and an easy, two-
man installation process.
By making the switch to digital, with Fengshi's Outdoor Digital Menu Boards, you will no longer need to
manually update static menu content throughout the day. Instead, the digital content can be updated
remotely and in real-time, creating a seamless drive-thru experience for customers and a more efficient
restaurant.
Outdoor Waterproof Digital Signage LCD Display Feature
◉ Easy integration for partner's customized design
Because the Fengshi's outdoor drive-through display screen is significantly thinner and lighter than
previous designsit is mount-ready and can be more easily customized for a variety of applications.
◉ Slim & Light Design
Fengshi's outdoor drive-through display screen composed of single display with a light and slim design
and itcan be easily customized to suit various exteral environments with no needfor separate casing.
◉ Bright & Brilliant
Fengshi's outdoor drive-through display screen possess powerful brightness of 3000 nits, providing clear
andvivid picture quality even under direct sunlight.
◉ Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allowsthe screen to be viewed at
virtually any angle.
◉ Energy-Efficient Performance
Through advanced thermal control functionality and a filter-freedesign, Fengshi's outdoor drive-through
display screen operate at reduced energy con -sumption. An integrated heat exchanger modifies signage
resourc-es depending on the environment, and ultimately cuts costs foroperators.
Parameter
| PANEL | 49"outdoor digital signage lcd display |
| IPS, | |
| 16:09 | |
| 1,920 x 1,080 (FHD) | |
| 3,000 cd/m2 | |
| 1,300:1 | |
| 178 x 178 | |
| Hard coating (2H), Reflection 2.0% (Max.) | |
| 50,000 Hrs Min. | |
| 24 Hrs | |
| Landscape & Portrait | |
| CONNECTIVITY | HDMI, VGA, USB, Audio |
| / | |
| RS232C Optional | |
| PHYSICAL SPECIFICATION | Black |
| 18.0 mm (T/B), 18.0 mm (L/R) | |
| 739.0 x 433.0 x 85.0 mm | |
| 25.0 kg | |
| 1,270 x 790 x 230 mm | |
| 28 kg | |
| 400 x 400 mm, 4 x M8 | |
| ENVIRONMENTAL CONDITIONS | 0°C to 45°C |
| 10% to 80% | |
| POWER | Built-In Power |
| 100-240 V~, 50/60 Hz | |
| 144 W / 160 W | |
| / | |
| STANDARD (CERTIFICATION) | / |
| FCC Class "A" / CE | |
| ACCESSORIES | Mounting Bracket: wall mount, floor stand, roof hanging |
| Remote control(w/o battery) ,AC power plug | |
| WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in sunlight readable window LCD panel/LCM
since 2016 located in Shenzhen.
2. Q: How long is the warranty for window lcd screen display?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification for window lcd screen.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: window lcd display sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
