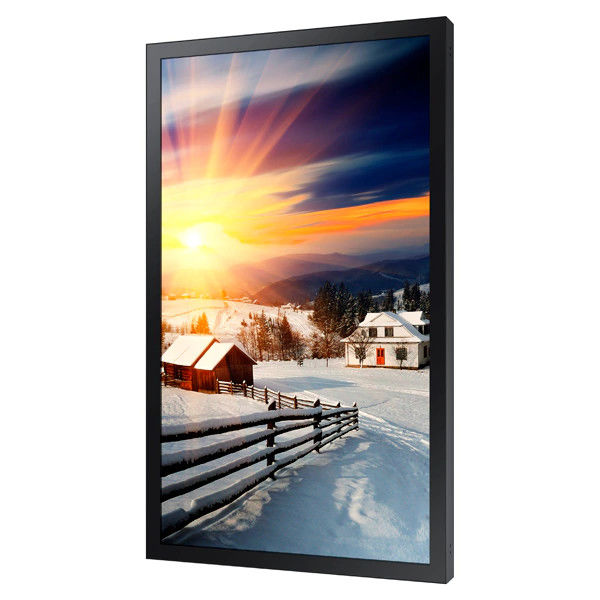

55 inch OD Series 24/7 work customized sunlight readable ultra brightness
5000 nit lcd outdoor advertising tv display
1. High brightness 3000nits-5000nits
The OD series possess powerful brightness of 5000 nits, providing clear and vivid picture quality
even under direct sunlight.
2. Automatic dimming sensor
The brightness will be varied with the brightness of the environment.
3. Industrial grade 110℃ high Tni panel, wide viewing angle
4.Full optical bonding in front of the screen, IP56 protection level
5. Intelligent temperature control, cooling fan system
|Size Mearsure||54.6" / 138.7cm|
|Pixel Pitch(mm)||0.630 x 0.630|
|Active Display Area(mm)||1209.60(H) x 680.40(V)|
|Display Colors||8 bit - 16.7M|
|Power Supply||AC 100 - 240 V~ (+/- 10 %),|
|Dimension (mm)||1281.2 x 752.0 x 95.5 mm|
|1410 x 1000 x 260 mm|
|Mounting Hole||1170 x 560 (Basic)|
|1200 x 400 (VESA Bracket-et Option)|
|Bezel Width (mm)||Even 33.8 mm|
|Operating Temperature||-30℃~ 50℃|
|Processor Coretex||Rockchip RK3288 Coretex A17 1.8GHz|
|Memory Interface||HYNIX DDR3 2GB|
|Operating System||Android 7.1|
|MPEG-1/2/4, H.264, WMV,WKV,TS,FLV|
|JPEG, PNG, BMP, PNG,GIF|
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI,
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+tem-
perature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass
through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
