15 Inch Small Lcd Display Panel Module Sunlight Readable Display 20 Pin
  • 15 Inch Small Lcd Display Panel Module Sunlight Readable Display 20 Pin
  • 15 Inch Small Lcd Display Panel Module Sunlight Readable Display 20 Pin
  • 15 Inch Small Lcd Display Panel Module Sunlight Readable Display 20 Pin
  • 15 Inch Small Lcd Display Panel Module Sunlight Readable Display 20 Pin

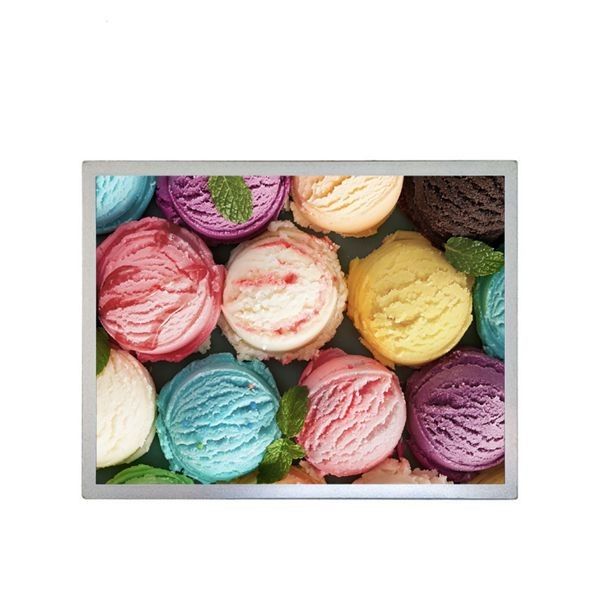

15 Inch Small Lcd Display Panel Module Sunlight Readable Display 20 Pin

Place of Origin Guangdong, China
Brand Name Fengshi
Model Number FS150-E10-Z
Product Details
15.0'' High Brightness Small LCD Panel
1000 Cd/m2
1024(RGB)×768 , XGA
 Display Area:
Response Time:
30 (Typ.)(Tr+Td) Ms
1 Year
Operating Temp.:
0°- 60°C
High Light:

15 inch lcd panel


15 inch lcd display panel


small lcd module

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
1.each panel are packed with EPE in strong carton box 2. packaged by wooden case or flight case
Delivery Time
2-3 weeks
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week
Product Description

15inch 1000 nits small lcd panel LCD for outdoor sunlight readable display



Small LCD Panel Description


1. Small size LCD digital panel with edge backlight design

The small size lcd digital panel we use our self-designed Aluminum ELED backlight module,

this makes, this small size lcd slim, light and at a lower power consumption level while the

brightness is high.


2. High brightness Great Visibility

The 1500nits high brightness LCD digital panel is able to clearly delivers the content and

attract public attention, which is one of the greatest advantage of indoor or outdoor visibility.


3. High bright LCD module with auto-dimming sensor

The LCD screen brightness is automatically adjusted to the ambient light intensity, with

brightness increasing in light for better visibility and decreasing in darkness for efficient power



4. Wide Range Application

The small size LCD panel has a high brightness, ELED slime backlight design, it can be widely

used in outdoor application, such as: outdoor advertisin, tranportation, retail, Military, QSR, etc.



Small LCD Panel Parameter


Item 15.0'' high brightness LCD panel
Model FS150-E10-B
Screen Size 15.0 inches
Display Area 304.1*228mm
Outline Dimenssion 326.5*253.5*10mm
Panel Type High brightness LCD with WLED
Configuration RGB Vertical Stripe
Resolution 1024(RGB)×768 , XGA
Brightness 1000nits
Aspect Ratio 4:3
Constrast Ratio 1000 : 1 (Typ.) (TM)
Response Time 30 (Typ.)(Tr+Td) ms
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Driver Elements a-Si TFT-LCD
Surface Treatment Antiglare, Hard coating (3H)
Display Color 16.7M 72% (CIE1931)
Display Mode ADS, Normally Black, Transmissive
Interface Type LVDS (1 ch, 8-bit) , Connector , 20 pins
Input Voltage DC12V
Power 18.8W
Weight 1.3kg
Backlit Lifetime 50000hrs
Operating Temp. -20°- 70°C
Storage Temp. -20°- 70°C




Small Size LCD Panel Drawing



Small LCD Display Scenario


Fengshi outdoor small LCD panel displays are built to tolerate the elements and are designed

to resist water from entering the display and protects against the ingress of dust.


They are been widely installed at

Public places:

Advertise and promote business or products or services. such as:bookstores, stadiums,

museums, conference centers,markets banks, securities, funds, insurance companies.


Entertainment and leisure:

To inform and entertain the target audience.such as:cinemas, fitness gyms, resorts, KTV

entertainment venues, foot baths, bars,beauty salons,golf courses, etc .;


Industrial sites:

food processing equipment, machinery control, office automation equipment, automated

testing,automotive testing equipment, etc .;


Transportation place:

bus station, passenger station, subway, high-speed rail, airport, etc .


Medical places:

hospitals, medical institutions, pharmacy chain institutions, etc.



15 Inch Small Lcd Display Panel Module Sunlight Readable Display 20 Pin 0


15 Inch Small Lcd Display Panel Module Sunlight Readable Display 20 Pin 1





1.Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer specialized in sunlight readable small size LCD panel

LCM since 2016 located in Shenzhen.


2. Q: How long is the warranty?

A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from

the date of delivery for small lcd panel.


3. Q: Do you provide ODM/OEM or customized service?

A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.

In order to support different customers, we are able to supply:

(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor

(2) Open Frame LCD Displays:LCD Panel+PSU+AD board(optional interface, eg:HDMI, VGA,

DVI, USB...)+Touch optional.

(3) Window Facing Displays:LCD Panel+PSU+AD board (network board optional)+fan system

+temperature control board+housing.

(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.


4. Q: What brand of OC do you use?

A:Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each small lcd

display will pass through strict quality inspection.


5. Q:What certifications you have?

A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.


6.Q:What is the temperature when the screen surface goes black?

A: Normal grade goes black over 68℃; industrial grade goes black over 105 or 110℃.


7.Q: What is the MOQ?

A: Small lcd display panel sample testing is acceptable, the price is negotiable for bulk order.


8.Q: When will you delivery?

A: High brightness LCD panel sample order shipped in 3days, bulk order shipped with 2 weeks.
