Window LCD Display
>
|
|
| Place of Origin | GuangDong, China |
| Brand Name | Fengshi |
| Certification | FCC, CE |
| Model Number | FSHD750-D25-4K-PD |

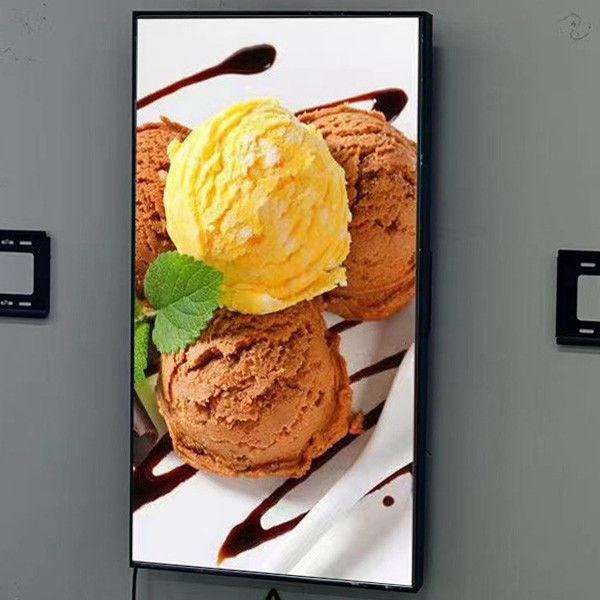

75inch high brightness temperature kiosk digital LCD kiosk wall hanging digital LCD
Description
1. High Visibility Under The Sunlight:
Make an impact in bright or semi-outdoor locations. This high-brightness 2500 cd/m2 display
delivers a clear picture in areas that are subject to high ambient light. Perfect for window
displays and public information areas fitted with regulated temperature control and/or ventilated
protection that can maintain ideal operating conditions. HD series shop window lcd displayclearly
delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.
2. Slim Design and Smart Brightness Control
High Brightness shop window lcd screen attracts attention with elegant design, featuring a
slim bezel at 18mm and 85mm depth. Supporting the best-in-class picture quality is a slim
design that complements the surroundings of any retail environment, while freeing up valuable
space for all those latest products.These displays enhance the visual impact of the played
content and the store’s overall atmosphere. The shop window lcd screen brightness is
automatically adjusted depending on the ambient light. The brightness is increased in light
for better visibility, while it is decreased in darkness for efficient power management.
3. 4K High TNI 110℃ LCD:
Designed with superior durability high Tni110℃ OC for all weather conditions Industry-leading
widest operating, high temperature LCD panel reliable performance which can leave a deep
impression even in the brightest sunlight, without black mura.
Parameter
| PANEL | Screen Size | 65" | 75" | |
| Panel Technology | IPS, | IPS, | ||
| Aspect Ratio | 16:09 | 16:09 | ||
| Native Resolution | 3,840 x 2,160 (UHD) | 3,840 x 2,160 (UHD) | ||
| Brightness | 2,500 cd/m2 | 2,500 cd/m2 | ||
| Contrast Ratio | 1,100:1 | 1,200:1 | ||
| Viewing Angle (H x V) | 178 x 178 | 178 x 178 | ||
| Surface Treatment | Antiglare (Haze 28%), Hard coating (2H) | Antiglare (Haze 3%), Hard coating (2H) | ||
| Lifetime | 50,000 Hrs Min. | 50,000 Hrs Min. | ||
| Operation Hours | 24 Hrs | 24 Hrs | ||
| Orientation | Landscape & Portrait | Landscape & Portrait | ||
| CONNECTIVITY | Input | HDMI x 2, USB | HDMI x 2, USB | |
| Output | / | / | ||
| External Control | RS232C Optional | RS232C Optional | ||
| PHYSICAL SPECIFICATION | Bezel Color | Black | Black | |
| Bezel Width | 18.0 mm (T/B), 18.0 mm (L/R) | 18.0 mm (T/B), 18.0 mm (L/R) | ||
| Monitor Dimension (W x H x D) | 1,468.6 x 843.6 x 85.0 mm | 1,689.6 x 968.0 x 85.0 mm | ||
| Weight (Head) | 45.0 kg | 70.0 kg | ||
| Carton Dimensions (W x H x D) | 1,620 x 1,000 x 230 mm | 1,880 x 1,120 x 250 mm | ||
| Packed Weight | 48 kg | 80 kg (TBD) | ||
| VESATM Standard Mount Interface | 400 x 400 mm, 4 x M8 | 500 x 600 mm, 4 x M8 | ||
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C | 0°C to 45°C | |
| Operation Humidity | 10% to 80% | 10% to 80% | ||
| POWER | Power Type | Built-In Power | Built-In Power | |
| Power Supply | 100-240 V~, 50/60 Hz | 100-240 V~, 50/60 Hz | ||
| Power Consumption | Typ. / Max. | 405 W / 450 W | 540 W / 600 W | |
| Smart Energy Saving | / | / | ||
| STANDARD (CERTIFICATION) | Safety | / | / | |
| EMC | FCC Class "A" / CE | FCC Class "A" / CE | ||
| ACCESSORIES | Optional | Mounting Bracket: wall mount, floor stand, roof hanging | Mounting Bracket: wall mount, floor stand, roof hanging | |
| Basic | Remote control(w/o battery) ,AC power plug | Remote control(w/o battery) ,AC power plug | ||
| WARRANTY | 18Month, Free spare parts, Technical support | 18Month, Free spare parts, Technical support | ||
Drawing
Shop Window LCD Display Scenario
Thoughtful, engaging content in a storefront window has the power to engage customers and
ultimately lead them into the store. Shop window LCD displays screen series not only deliver
an image with fl awless clarity, but also are designed to maintain its superior picture quality even
when exposed to direct sunlight – a common challenge for conventional in-window displays.
In addition, with a slim and sleek design, the HD series is compatible with any window layout
and highlights the sophisticated and modern style of the brand. The shop window lcd screen
also delivers bright and clear images while consuming a low amount of power, which positions
businesses to reduce overall costs and optimize efficiency considerably. It's for shop window of
banks, securities, funds, insurance companies, pawn shops,Entertainment and leisure,
Commercial institutions, Industrial site, Transportation place and Medical places.
Shop Window LCD Display FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in high brightness shop LCD panel/LCM
since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, the shop window LCD screen display
we can guarantee each display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
