| Place of Origin | GuangDong, China |
| Brand Name | Fengshi |
| Certification | FCC, CE |
| Model Number | FSDB490-D30-PD |

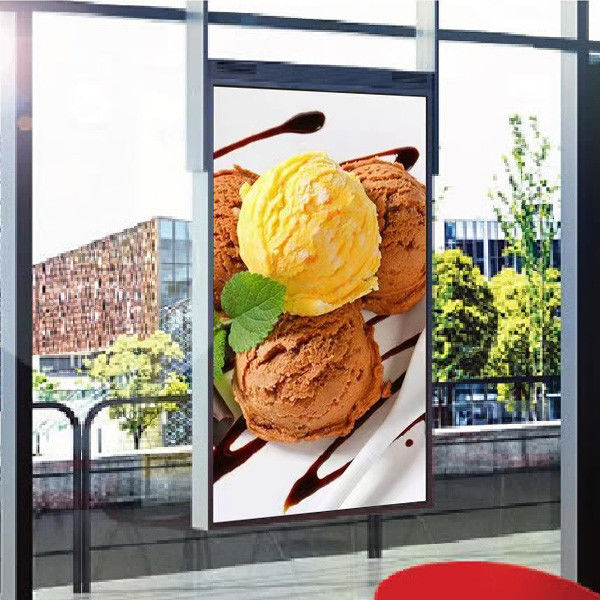

49inch shop high brightness window digital displays double sided digital signage
Double Side Widiow Signage Description
1. The double side window signage features a double-sided screen, with each side adjusted
for the environments in which it is utilized. The window-facing side’s 3000nit brightness helps
maintain picture integrity regardless of sunlight, while the in-store side features 1000nit,
delivering information clearly.
2. The screen brightness is automatically adjusted depending on the ambient light. The
brightness is increased in light for better visibility, while it is decreased in darkness for efficient
power management.
3. With durable high TNI 110℃ lcd OC, the double sided digital signage series continuously
provides robust durability.
4. double sided window lcd display can be easily mounted on a stand or hung from a ceiling,
the smart design creates a clean look and offers flexibility in how valuable floor space is
designed and utilized.
Double Side Widiow Signage Parameter
| PANEL | Screen Size | 49" | 55" | |
| Panel Technology | IPS, | IPS, | ||
| Aspect Ratio | 16:09 | 16:09 | ||
| Native Resolution | 1,920 x 1,080 (FHD) | 1,920 x 1,080 (FHD) | ||
| Brightness | 2,500 + 700 cd/m2 | 2,500 + 700 cd/m2 | ||
| Contrast Ratio | 1,300:1 | 1,000:1 | ||
| Viewing Angle (H x V) | 178 x 178 | 178 x 178 | ||
| Surface Treatment | Hard coating (2H), Reflection 2.0% (Max.) | Hard coating (2H), Reflection 1.5% (Typ.) | ||
| Lifetime | 50,000 Hrs Min. | 50,000 Hrs Min. | ||
| Operation Hours | 24 Hrs | 24 Hrs | ||
| Orientation | Portrait | Portrait | ||
| Mainboard | OS | Android 7.1 | ||
| CPU | Rockchip RK3288, 4-core ARM Cortex A17 clocked at 1.6GHz | |||
| GPU | 4-core ARM Mali-T764 | |||
| RAM | DDR3 2GB (Optional 4GB) | |||
| Storage | eMMC 8GB (Optional 32GB), Note: Support TF / USB expansion | |||
| CONNECTIVITY | Input | HDMI, RJ45, VGA, USBx2, Audio | ||
| Output | / | |||
| External Control | CMS | |||
| PHYSICAL SPECIFICATION | Bezel Color | Black | Black | |
| Bezel Width | 25.0 mm (T/B), 25.0 mm (L/R) | 25.0 mm (T/B), 25.0 mm (L/R) | ||
| Monitor Dimension (W x H x D) | 1,166.9*656.0*80.0 mm | 1315.0*734.0*80.0 mm | ||
| Weight (Include Ceiling Bracket) | 32.0 kg | 42.0 kg | ||
| Carton Dimensions (W x H x D) | 1360 x 840 x 230 mm | 1470 x 900 x 230 mm | ||
| Packed Weight | 46 kg | 54 kg | ||
| VESATM Standard Mount Interface | See Drawing | See Drawing | ||
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C | 0°C to 45°C | |
| Operation Humidity | 10% to 80% | 10% to 80% | ||
| POWER | Power Type | Built-In Power | Built-In Power | |
| Power Supply | 100-240 V~, 50/60 Hz | 100-240 V~, 50/60 Hz | ||
| Power Consumption | Typ. / Max. | 300 W / 330 W | 280 W / 310 W | |
| Smart Energy Saving | / | / | ||
| STANDARD (CERTIFICATION) | Safety | / | ||
| EMC | FCC Class "A" / CE | |||
| ACCESSORIES | Optional | Stand Mounts Bracket | ||
| Basic | Remote control(w/o battery), AC power plug, Ceiling Mounts | |||
| WARRANTY | 18Month, Free spare parts, Technical support | |||
Double Side Widiow Signage Drawing
Double Side Widiow Signage Scenario
store owners and managers want to maximize the use of their retail environments, utilizing
space in the most efficient and impactful way possible.
Not only inside the store, but also on window displays which can capture the attention of
passersby, while delivering content in the store too.
This isn’t just in traditional retail stories either with a variety of spaces looking to utilize
display technology, from banks to subway stations and more.
Customers expect high-quality content and digital signage can help to meet this demand,
quickly becoming a key consideration for all stores and customer environments.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in Double side window signage LCD panel
LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6. Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7. Q: What is the MOQ?
A: Double side window signage Sample testing is acceptable, the price is negotiable for bulk order.
8. Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
