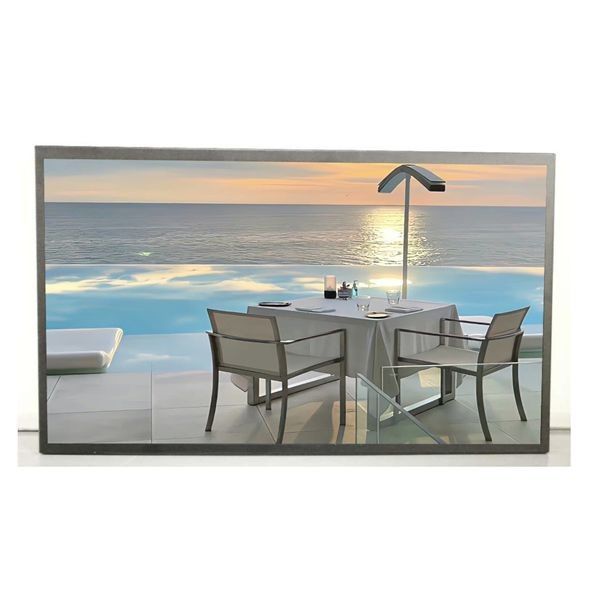

27 inch indoor small lcd panel signage display screens sun readable monitor
Small LCD Panel Monitor Description
1. With edge backlight design and brightness up to 1500nits.
The small size lcd panel use our own design Aluminum ELED backlight module, this makes
the small size lcd slim, light and at a lower power consumption level while the brightness is
high. meanwhile, the lcd panel clearly delivers contents and attracts public attention.
2. High bright LCD module with auto-dimming sensor
The brightness of the screen is automatically adjusted according to the ambient light. Light
sensors built into our 27 inch LCD panel measure ambient light in the area and automatically
adjust the image light accordingly, providing the best experience for the viewer, and saving
energy costs, reducing heat and extending the life of the screen.
3. Wide Range Application
The small size LCD panel has a high brightness, ELED slime backlight design, it can be widely
used in all outdoor application, such as:outdoor advertisin, tranportation, retail, military, QSR, etc.
Small LCD Panel Monitor Parameter
| Item | 27.0'' high brightness LCD panel | Item | 27.0'' high brightness LCD panel | ||
| Model | FS270-E10-Z | FS270-E15-Z | Model | FS270-E10-Z | FS270-E15-Z |
| Screen Size | 27 inches | Driver Elements | a-Si TFT-LCD | ||
| Display Area | 597.8*336.3mm | Surface Treatment | Antiglare, Hard coating (3H) | ||
| Outline Dimenssion | 626.8*367.4*18.8mm | Display Color | 16.7M 99% (CIE1931) | ||
| Panel Type | High brightness LCD with WLED | Display Mode | FFS, Normally Black, Transmissive | ||
| Configuration | RGB Vertical Stripe | Interface Type | LVDS (2 ch, 8-bit) , 30 pins , Connector | ||
| Resolution | 1920*1080pixel | Input Voltage | DC12V | ||
| Brightness | 1000nits | 1500nits | Power | 42W | 60W |
| Aspect Ratio | 16:9 | Weight | 3kg | ||
| Constrast Ratio | 1000:1 (Typ.) (TM) | Backlit Lifetime | 50000hrs | ||
| Response Time | 14ms (Typ.)(G to G) | Operating Temp. | 0°- 50°C | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥20) | Storage Temp. | -20°- 60°C | ||
Drawing
Small LCD Panel Monitor Scenario
Fengshi high brightness small LCD panel monitor with brightness ratings up to 1500 nits, can
easily be viewed in direct sunlight, such as storefront windows or outdoor enclosures, without
the interference of glare from surrounding glass and reflections. As well as the industry of
Financial institutions, Public places, Entertainment and leisure, Industrial sites, Transportation
place, Medical places, etc.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in small size LCD panel monitor/LCM Monitor
since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery for small size LCD panel monitor.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays:LCD Panel+PSU+AD board(optional interface, eg:HDMI, VGA,
DVI, USB...)+Touch optional.
(3) Window Facing Displays:LCD Panel+PSU+AD board (network board optional)+fan system
+temperature control board+housing.
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A:Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each small size lcd
display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Small size LCD panel monitor sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped with 2 weeks.
