| Place of Origin | China |
| Brand Name | Fengshi |
| Certification | FCC / CE/ROHS |
| Model Number | FSHD430 |

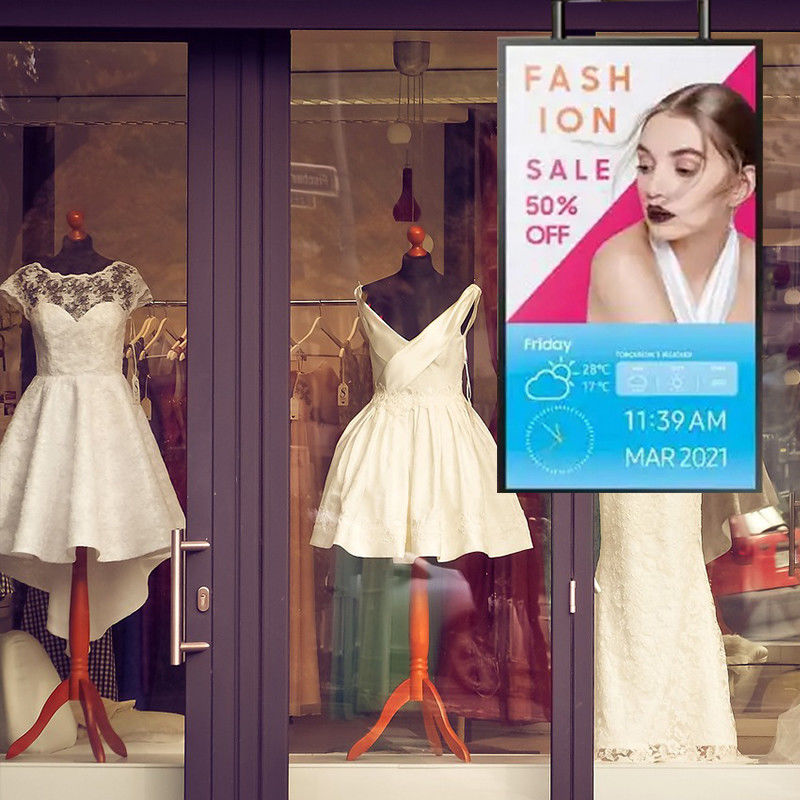

High Brightness 700/3000 Nits 43 Inch Screen Single Sided Smart Signage
Window Advertising Tft Display
◉ High Brightness
The window-facing side's 3000-nit brightness helpsmaintain picture integrity regardless
of sunlight, while thein-store side features 700 nits to deliver information clearly.
◉ Fan cooling Design
By the built-in cooling fans, we have made the FSHD430 an ideal choice for the in-window
environment. lts operating noise level is under 2 5dB, which is quieter than that of typicaldaily conversation.
◉ High temperature LCD panel
Has a professional high temperature (1 10'C ) TNI LCDWhich can leave a deep impre ssion
even in the brighte st sunlight, without "black muraDesigned with superior durability for all weather
conditionsIndustry-le ading widest operating temperature range for worry-free installationEnergy-
saving LED de sign, low maintenance cost and high retum on investment;
Parameter
| Screen Size | 43" | |
| Panel Technology | IPS, | |
| Aspect Ratio | 16:09 | |
| Native Resolution | 1,920 x 1,080 (FHD) | |
| Brightness | 2,500 cd/m2 | |
| Contrast Ratio | 1,200:1 | |
| Viewing Angle (H x V) | 178 x 178 | |
| Surface Treatment | Antiglare (Haze 1%), Hard coating (3H) | |
| Lifetime | 50,000 Hrs Min. | |
| Operation Hours | 24 Hrs | |
| Orientation | Landscape & Portrait | |
| Input | HDMI, VGA, USB, Audio | |
| Output | / | |
| External Control | RS232C Optional | |
| Bezel Color | Black | |
| Bezel Width | 18.0mm (T/B), 18.0mm (L/R) | |
| Monitor Dimension (W x H x D) | 980.0 x 568.0 x 85.0 mm | |
| Weight (Head) | 22.0 kg | |
| Carton Dimensions (W x H x D) | 1,130 x 710 x 230 mm | |
| Packed Weight | 24.0 kg | |
| VESATM Standard Mount Interface | 400 x 300 mm, 4 x M8 | |
| Operation Temperature | 0°C to 45°C | |
| Operation Humidity | 10% to 80% | |
| Power Type | Built-In Power | |
| Power Supply | 100-240V~, 50/60Hz | |
| Power Consumption | Typ. / Max. | 144 W / 160 W |
| Smart Energy Saving | / | |
| Safety | / | |
| EMC | FCC Class "A" / CE | |
| Optional | Mounting Bracket: wall mount, floor stand, roof hanging | |
| Basic | Remote control(w/o battery) ,AC power plug | |
| WARRANTY | 18Month, Free spare parts, Technical support | |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in window LCD panel/LCM since 2016
located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery of the high brightness window lcd screen display.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display
will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness window LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
Contact Us at Any Time
