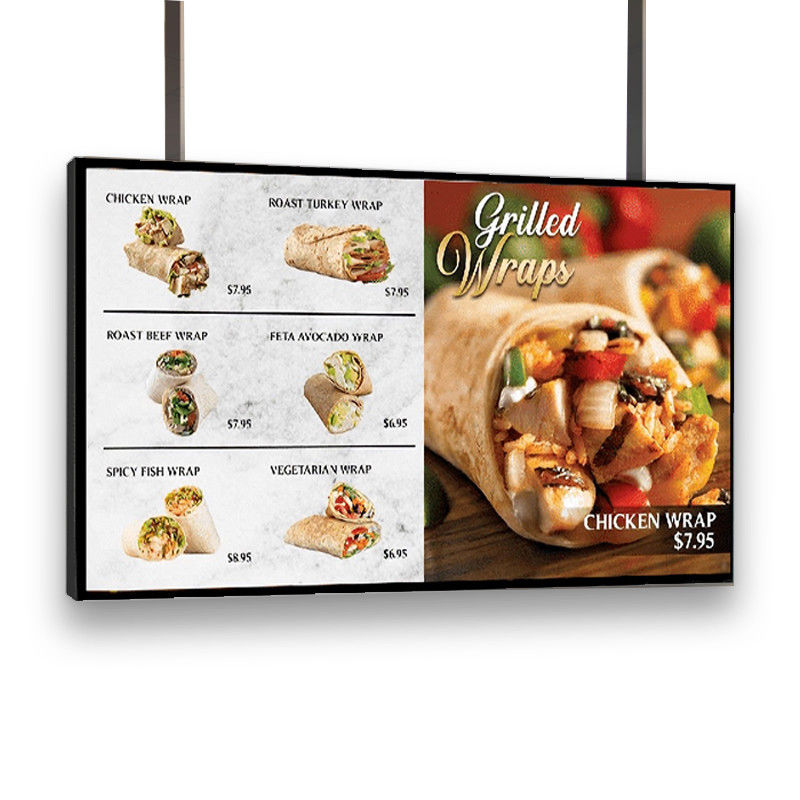

55Inch Customized Mall Digital Signage Advertising Display Menu Board Screen
◉ Great Visibility
With a high brightness of 700 nits FSHD550 clearly delivers contents andattracts public attention,
which is the ultimatedisplay for indoor visibility.
Parameter
| Specifications | FSHD550-E | ||
| PANEL | Screen Size | 55" | |
| Panel Technology | IPS, | ||
| Aspect Ratio | 16:09 | ||
| Native Resolution | 3,840 x 2,160 (UHD) | ||
| Brightness | 700 cd/m2 | ||
| Contrast Ratio | 1,300:1 | ||
| Viewing Angle (H x V) | 178 x 178 | ||
| Lifetime | 50,000 Hrs Min. | ||
| Operation Hours | 24 Hrs | ||
| Orientation | Landscape & Portrait | ||
| CONNECTIVITY | Input | HDMI x 2, USB | |
| Output | / | ||
| External Control | RS232C Optional | ||
| PHYSICAL SPECIFICATION | Bezel Color | Black | |
| Bezel Width | 9.9mm (T/B/L/R) | ||
| Monitor Dimension (W x H x D) | 1,233.4 x 704.7 x 46.2 mm | ||
| Weight (Head) | 20.0 kg | ||
| Carton Dimensions (W x H x D) | 1,390 x 860 x 230 mm | ||
| Packed Weight | 22.0 kg | ||
| VESATM Standard Mount Interface | 400 x 400 mm, 4 x M6 | ||
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C | |
| Operation Humidity | 10% to 80% | ||
| POWER | Power Type | Built-In Power | |
| Power Supply | 100-240V~, 50/60Hz | ||
| Power Consumption | Typ. / Max. | 89 W / 98 W | |
| Smart Energy Saving | / | ||
| STANDARD (CERTIFICATION) | Safety | / | |
| EMC | FCC Class "A" / CE | ||
| ACCESSORIES | Optional | Mounting Bracket: wall mount, floor stand, roof hanging | |
| Basic | Remote control(w/o battery) ,AC power plug | ||
| WARRANTY | WARRANTY | 18Month, Free spare parts, Technical support | |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
