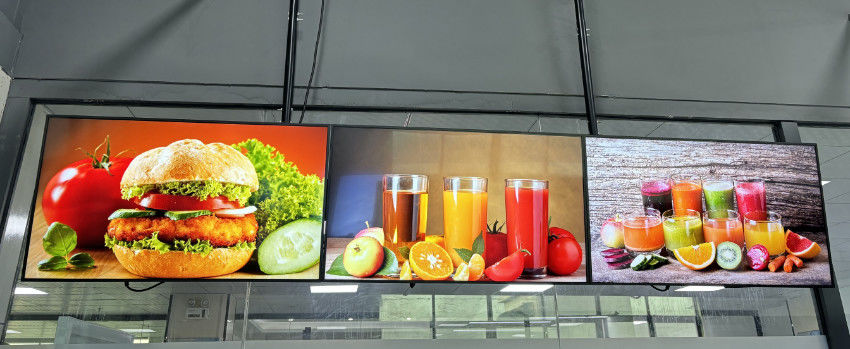

700nits FHD Indoor Digital Menu Board For Fast Food Advertising
Indoor Digital Display Menu Board Description
Digital Menu Board HD-E Series
32 43 55 inch
◉ Great Visibility
With a high brightness of 700 nits HD-E series clearly delivers contents and attracts public
attention, which is the ultimate display for indoor visibility.
◉ Slim Design
HD-E series attracts attention with elegant design, featuring a slim bezel and depth thanks to
the ELED backlight module. These displays enhance the visual impact of the played content
and the store’s overall atmosphere.
◉ Various Mount Options
The HD-E series is lighter and ready to be customized for various customer needs and settings.
It is also mountable and optimized for customers, based on the industry purpose and use.
◉ Quiet Operation Fan-less Design
By eliminating the need for a cooling fan, we have made the HD-E series an ideal choice for
the indoor environment. Its operating noise level is quieter than that of daily conversation.
Parameter
|
Specifications
|
FSHD320-E
|
FSHD430-E
|
FSHD550-E
|
|
PANEL
|
Screen Size
|
32"
|
43"
|
55"
|
|
Panel Technology
|
IPS,
|
IPS,
|
IPS,
|
|
Aspect Ratio
|
16 : 9
|
16 : 9
|
16 : 9
|
|
Native Resolution
|
1,920 x 1,080 (FHD)
|
1,920 x 1,080 (FHD)
|
3,840 x 2,160 (UHD)
|
|
Brightness
|
700 cd/m2
|
700 cd/m2
|
700 cd/m2
|
|
Contrast Ratio
|
1,200:1
|
1,200:1
|
1,300:1
|
|
Viewing Angle (H x V)
|
178 x 178
|
178 x 178
|
178 x 178
|
|
Lifetime
|
50,000 Hrs Min.
|
50,000 Hrs Min.
|
50,000 Hrs Min.
|
|
Operation Hours
|
24 Hrs
|
24 Hrs
|
24 Hrs
|
|
Orientation
|
Landscape & Portrait
|
Landscape & Portrait
|
Landscape & Portrait
|
|
CONNECTIVITY
|
Input
|
HDMI, VGA, USB, Audio
|
HDMI, VGA, USB, Audio
|
HDMI x 2, USB
|
|
Output
|
/
|
/
|
/
|
|
External Control
|
RS232C Optional
|
RS232C Optional
|
RS232C Optional
|
|
PHYSICAL
SPECIFICATION
|
Bezel Color
|
Black
|
Black
|
Black
|
|
Bezel Width
|
7.9mm (T/B/L/R)
|
7.9mm (T/B/L/R)
|
9.9mm (T/B/L/R)
|
|
Monitor Dimension (W x H x D)
|
718.2 x 412.7 x 46.2 mm
|
961.0 x 549.7 x 46.2 mm
|
1,233.4 x 704.7 x 46.2 mm
|
|
Weight (Head)
|
8.0 kg
|
15.0 kg
|
20.0 kg
|
|
Carton Dimensions (W x H x D)
|
850 x 580 x 230 mm
|
1,120 x 710 x 230 mm
|
1,390 x 860 x 230 mm
|
|
Packed Weight
|
10 kg
|
17 kg
|
22.0 kg
|
|
VESATM Standard Mount Interface
|
400 x 200 mm, 4 x M5
|
400 x 400 mm, 4 x M6
|
400 x 400 mm, 4 x M6
|
|
ENVIRONMENTAL
CONDITIONS
|
Operation Temperature
|
0°C to 45°C
|
0°C to 45°C
|
0°C to 45°C
|
|
Operation Humidity
|
10% to 80%
|
10% to 80%
|
10% to 80%
|
|
POWER
|
Power Type
|
Built-In Power
|
Built-In Power
|
Built-In Power
|
|
Power Supply
|
100-240 V~, 50/60 Hz
|
100-240 V~, 50/60 Hz
|
100-240V~, 50/60Hz
|
|
Power
Consumption
|
Typ. / Max.
|
45 W / 50 W
|
72 W / 80 W
|
89 W / 98 W
|
|
|
Smart Energy Saving
|
/
|
/
|
/
|
|
STANDARD
(CERTIFICATION)
|
Safety
|
/
|
/
|
/
|
|
EMC
|
FCC Class "A" / CE
|
FCC Class "A" / CE
|
FCC Class "A" / CE
|
|
ACCESSORIES
|
Optional
|
Mounting Bracket: wall mount, floor stand, roof hanging
|
|
Basic
|
Remote control(w/o battery) ,AC power plug
|
|
WARRANTY
|
|
18Month, Free spare parts, Technical support
|
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
