| Place of Origin | China |
| Brand Name | Fengshi |
| Certification | FCC / CE/ROHS |
| Model Number | FSHD490 |

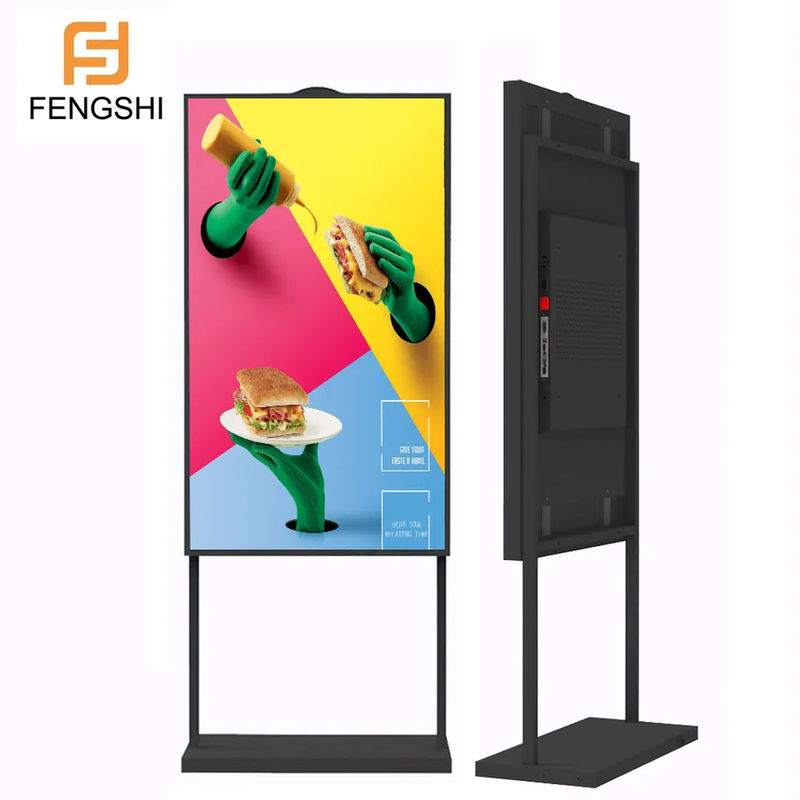

Slim Outdoor Floor Standing LCD Advertising Screen Display 2500nits Digital Signage Ads Kiosk
Digital Signage Ads Kiosk Feature
1. High Visibility Under The Sunlight:
High Brightness window LCD screen deliver Your Message with High Visibility Even Under
the Strong Sunlight, With a great brightness of 4,000 nits and FHD picture quality, it clearly
deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
QWP enables clear visibility even when the viewer is wearing polarized sunglasses.
2. Smart Brightness Control :
The window LCD screen brightness is automatically adjusted accoridng to the ambient light.
The brightness is increased in light for better visibility, while it is decreased in darkness for
efficient power management. It's adjustment range is from 30% to 100%.
3. High TNI 110℃ LCD:
All HD Series window lcd display designed with superior durability High TNI110℃ OC for all
weather conditions Industry-leading widest operating high temperature LCD panel reliable
performance which can leave a deep impression even in the brightest sunlight, without black
mura.
4. Slim Design :
To make HD series window lcd display more space friendly and slim, it attracts attention with
elegant design, featuring a slim bezel and depth. These displays enhance the visual impact
of the played content and the store’s overall atmosphere. It's a best choice for in-window
environment advertising application.
Digital Signage Ads Kiosk Parameter
| PANEL | 49" |
| IPS, | |
| 16:09 | |
| 1,920 x 1,080 (FHD) | |
| 2,500 cd/m2 | |
| 1,300:1 | |
| 178 x 178 | |
| Hard coating (2H), Reflection 2.0% (Max.) | |
| 50,000 Hrs Min. | |
| 24 Hrs | |
| Landscape & Portrait | |
| CONNECTIVITY | HDMI, VGA, USB, Audio |
| / | |
| RS232C Optional | |
| PHYSICAL SPECIFICATION | Black |
| 18.0 mm (T/B), 18.0 mm (L/R) | |
| 739.0 x 433.0 x 85.0 mm | |
| 25.0 kg | |
| 1,270 x 790 x 230 mm | |
| 28 kg | |
| 400 x 400 mm, 4 x M8 | |
| ENVIRONMENTAL CONDITIONS | 0°C to 45°C |
| 10% to 80% | |
| POWER | Built-In Power |
| 100-240 V~, 50/60 Hz | |
| 144 W / 160 W | |
| / | |
| STANDARD (CERTIFICATION) | / |
| FCC Class "A" / CE | |
| ACCESSORIES | Mounting Bracket: wall mount, floor stand, roof hanging |
| Remote control(w/o battery) ,AC power plug | |
| WARRANTY | 18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in sunlight readable window LCD panel/LCM
since 2016 located in Shenzhen.
2. Q: How long is the warranty for window lcd screen display?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification for window lcd screen.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: window lcd display sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
