Window LCD Display
>
|
|
| Place of Origin | China |
| Brand Name | Fengshi |
| Certification | CE ROHS FCC CCC ISO9001 |
| Model Number | FSHD550 |

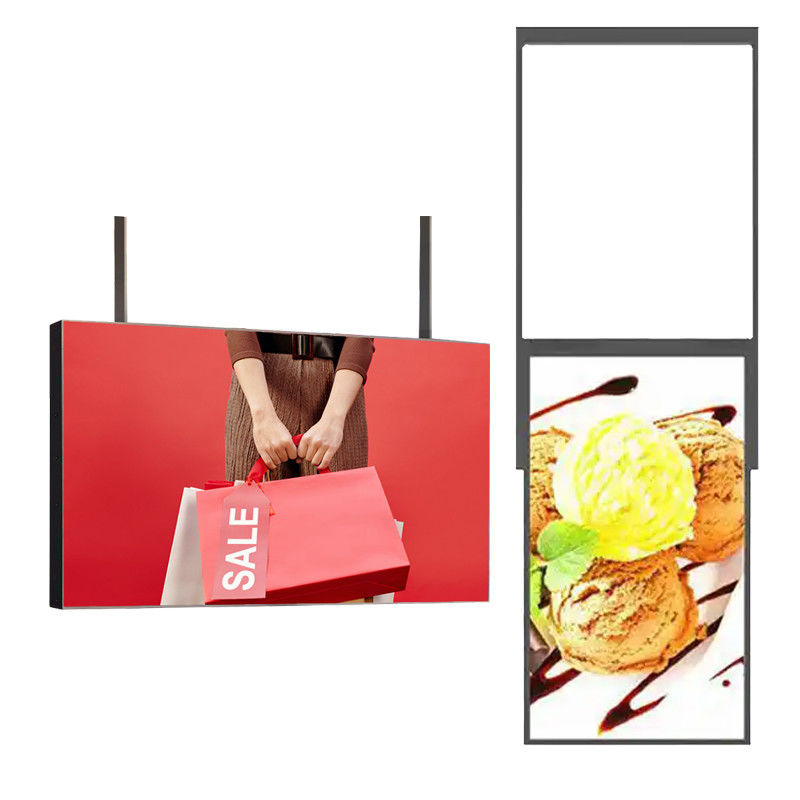

Customized Shop Window Lcd Screen Commercial Advertising Lcd Display Panel
Window lcd display Catch the eye of potential customers
Designed for storefront windows, Fengshi's semi-outdoor displays not only deliver an image with flawless
clarity, but are also designed to maintain superior picture quality and visibility even when exposed to direct
sunlight a common challenge for conventional in window displays.
Advertising Lcd Display Feature
1. Ultra-low noise when the product is working, direct sunlight outside the room, automatic photosensitive
adjustment of brightness, improve screen life, increase visibility, protect eyes, display advertisements on
both sides, maintain the clarity of advertisements, and attract customers' attention.
2. The ultra-thin body can be used for wall hanging, hanging and vertical display, saving product
placement space and improving space utilization.
3. Different sizes can be selected, we are professional factory production, can customize the size.
4. Ultra-wide display viewing angle, you can clearly see the content displayed on the screen in any direction
of the screen.
Parameter
| Specifications | FSHD550 | ||
| PANEL | Screen Size | 55inch shop window display lcd | |
| Panel Technology | IPS, | ||
| Aspect Ratio | 16:09 | ||
| Native Resolution | 1,920 x 1,080 (FHD) | ||
| Brightness | 5000 cd/m2 | ||
| Contrast Ratio | 1,000:1 | ||
| Viewing Angle (H x V) | 178 x 178 | ||
| Surface Treatment | Hard coating (2H), Reflection 1.5% (Typ.) | ||
| Lifetime | 50,000 Hrs Min. | ||
| Operation Hours | 24 Hrs | ||
| Orientation | Landscape & Portrait | ||
| CONNECTIVITY | Input | HDMI, VGA, USB, Audio | |
| Output | / | ||
| External Control | RS232C Optional | ||
| PHYSICAL SPECIFICATION | Bezel Color | Black | |
| Bezel Width | 8.8 mm (T/B), 8.8 mm (L/R) | ||
| Monitor Dimension (W x H x D) | 980.0 x 568.0 x 85.0 mm | ||
| Weight (Head) | 31.0 kg | ||
| Carton Dimensions (W x H x D) | 1,390 x 900 x 230 mm | ||
| Packed Weight | 33.0 kg | ||
| VESATM Standard Mount Interface | 400 x 400 mm, 4 x M8 | ||
| ENVIRONMENTAL CONDITIONS | Operation Temperature | 0°C to 45°C | |
| Operation Humidity | 10% to 80% | ||
| POWER | Power Type | Built-In Power | |
| Power Supply | 100-240V~, 50/60Hz | ||
| Power Consumption | Typ. / Max. | 162 W / 180 W | |
| Smart Energy Saving | / | ||
| STANDARD (CERTIFICATION) | Safety | / | |
| EMC | FCC Class "A" / CE | ||
| ACCESSORIES | Optional | Mounting Bracket: wall mount, floor stand, roof hanging | |
| Basic | Remote control(w/o battery) ,AC power plug | ||
| WARRANTY | WARRANTY | 18Month, Free spare parts, Technical support | |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in shop window display LCD panel/LCM
since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your require
-ments.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The shop window display lcd CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Shop window display lcd sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
