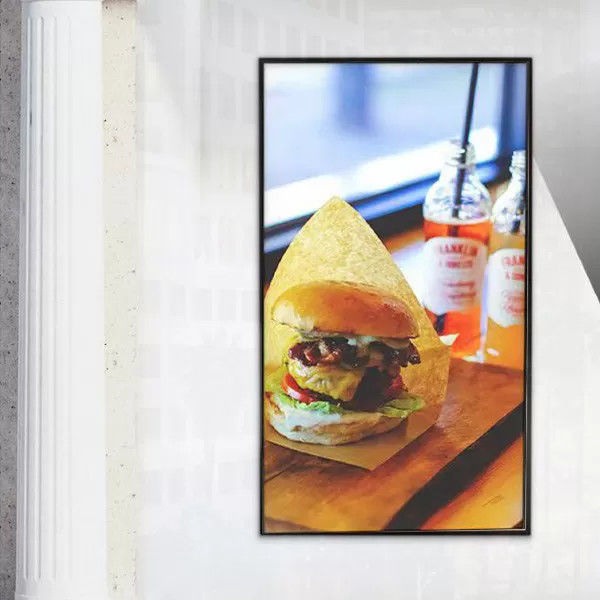

55" FHD 3000nits Sunlight Readable Industrial Grade Retail Window LCD Display
The FSHD550 display has been designed to be installed inside retail storerestaurant or any
window locations and face outwards, with high brightnessperfommance that is designed to
attract attention, evening during the daytime.Its low power consumption and the silent fans
create low noise makes it extremelyenergy efficient.
Features & Advantages
Sunlight readable & High brightness
LCD backlight brightness is 2500-5000nits, meeting the best viewing requirements under direct sunlight.
Intelligent brightness control
Automatically adjust the liquid screen brightness according to the ambient light brightness, which can save energy to the maximum extent.
Industrial Ultra-thin Design
Narrow frame, can be used for multiple screens. Ultra-thin, suitable for storefront info display. Brushed frame, more fashionable appearance.
Wide Applications
The window facing lcd display is widely use restaurant, cloth stores, shopping malls, barber shops, jewelry stores, real estate companies, drug stores, and etc.
Application with handing bracket:
Application with floor standing bracket:
Parameter
| PANEL |
55" |
| IPS, |
| 16:09 |
| 1,920 x 1,080 (FHD) / 3,840 x 2,160 (UHD) |
| 3,000 cd/m2 |
| 1,100:1 |
| 178 x 178 |
| Antiglare (Haze 28%), Hard coating (2H) |
| 50,000 Hrs Min. |
| 24 Hrs |
| Landscape & Portrait |
| CONNECTIVITY |
HDMI , USB |
| / |
| RS232C Optional |
| PHYSICAL SPECIFICATION |
Black |
| 18.0 mm (T/B), 18.0 mm (L/R) |
|
1250.00x721.00x80.00mm
|
| 33.0 kg |
| TBD |
| 50 kg |
| 400 x 400 mm, 4 x M8 |
| ENVIRONMENTAL CONDITIONS |
0°C to 45°C |
| 10% to 80% |
| POWER |
Built-In Power |
| 100-240 V~, 50/60 Hz |
| 260 W / 280 W |
| / |
| STANDARD (CERTIFICATION) |
/ |
| FCC Class "A" / CE |
| ACCESSORIES |
Mounting Bracket: wall mount, floor stand, roof hanging |
| Remote control(w/o battery) ,AC power plug |
| WARRANTY |
18Month, Free spare parts, Technical support |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in high brightness window lcd display since
2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised single sided lcd display warranty is 1 year or 18months(Non-artificial
damages) from the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA,
DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will
pass through strict quality inspection.
5. Q:What certifications you have?
A:The window lcd display has CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: UHD single sided storefront LCD display Sample testing is acceptable, the price is negotiable
for bulk order.
8.Q: When will you delivery?
A: High brightness window LCD panel sample order shipped in 7-12 days, bulk order shipped within
2 weeks.
