High Tni LCD
>
|
| Place of Origin | GuangDong, China |
| Brand Name | Fengshi |
| Model Number | FS430-D25-PD |

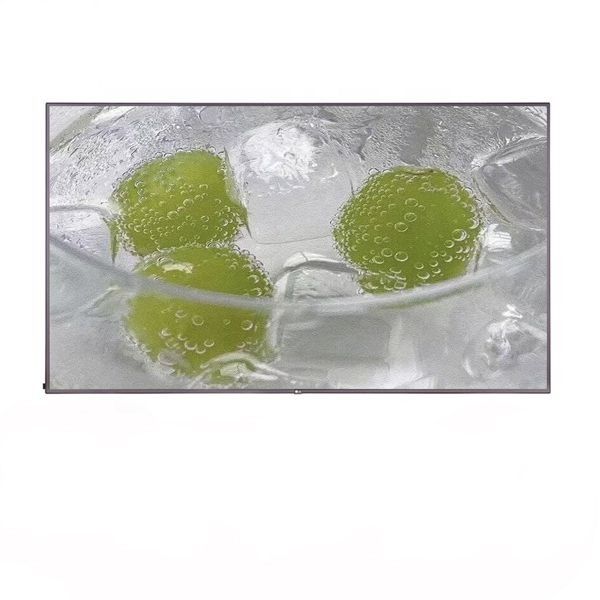

43 inch signage high tni lcd panel display screen high brightness monitor
High Brightness Tni LCD Description
High brightness TNI LCDs are a reliable and durable choice for applications that require high
temperature operation, and they can provide clear contents even in harsh environments.
Thanks to the high tni 110℃ LCD opencell, there will be no black mura even expose to the
direct sunlight.
All large size high Tni LCD panel has equip a light sensor which can adjust the led backlight
brightness at a range of 30~100% according to the ambient brightness.
The large size LCD panel adops VESA mounting holes, it's customer convenient to install it
in any orientation, or any housing, cabinet to make it a complete outdoor display.
High Brightness Tni LCD Parameter
| Model | |
| Item | 43.0'' high tni industrial grade LCD panel |
| Model | FS430-D20-PD |
| Dimensions | |
| Screen Size | 43 inches |
| Display Area | 940.9*529.2mm |
| Outline Dimenssion | 973*561*58.7mm |
| Weight | 7.3kg |
| LCD OC | |
| Panel Type | High brightness LCD with WLED |
| Configuration | RGB Vertical Stripe |
| Resolution | 1920(RGB)×1080 , FHD |
| Brightness | 2000nits |
| Aspect Ratio | 16:9 |
| Constrast Ratio | 1200:1 (Typ.) (TM) |
| Response Time | 8ms (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Driver Elements | a-Si TFT-LCD |
| Surface Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Display Color | 16.7M |
| Display Mode | IPS, Normally Black, Transmissive |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins , Connector |
| Power | |
| Input Voltage | DC24V |
| Power | 180W |
| Backlit Lifetime | 50000hrs |
| Temperature | |
| OC Surface Resist | 105°C |
| Operating Temp. | 0°- 50°C |
| Storage Temp. | -20°- 60°C |
High Brightness Tni LCD Drawing
High Brightness Tni LCD Scenario
High TNI LCD displays are a type of LCD that can operate at high temperatures without losing
their functionality. High TNI LCD displays are commonly used in:
1. banks, securities, funds, insurance companies, pawn shops
2. bookstores, exhibition halls, stadiums, museums, conference centers, talent markets
3. food processing equipment, machinery control
4. bus station, passenger station, subway, high-speed rail, airport
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in high brightness industrial grade LCD
panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages)
from the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your
requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg:
HDMI, VGA,DVI, USB...)+Touch optional.
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)
+fan system+temperature control board+housing.
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display
will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: High brightness industrial grade lcd display sample testing is acceptable, the price is
negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped with 2 weeks.
