| Place of Origin | GuangDong, China |
| Brand Name | Fengshi |
| Model Number | FS150-E10-B |

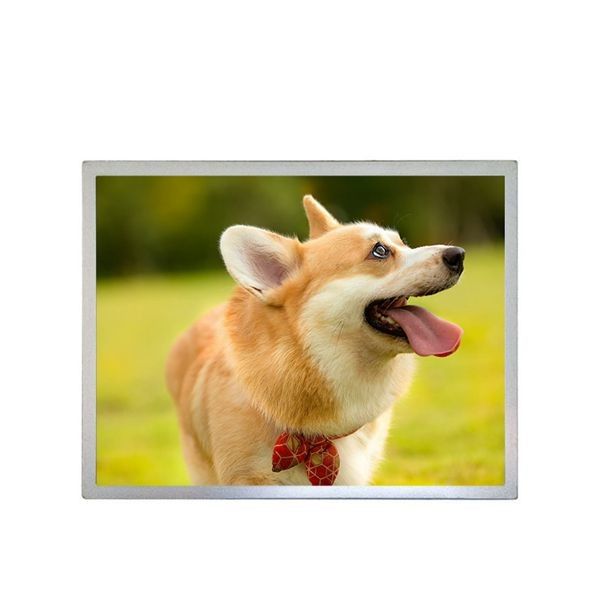

15 inch high tni lcd monitor high brightness industrial lcd screen for outdoor signage
Outdoor Signage LCD Screen Description
Most outdoor signage are install outdoor environments, such as streets, parks, stadiums, and
other public spaces. These displays are typically more rugged than indoor displays, and are
designed to withstand exposure to harsh weather conditions. So the outdoor signage lcd screen
must to have such features:
1. -20~70℃ wide operation temperature range, surface can withstand more than 105℃, to make
sure the screen will not go balck under direct sunlight.
2. High brightness with samll size 1500nit and large size 5000nit to against the bright sunlight.
3. Automatically adjust the led backlight brightness to keep energy saving while the screen is
bright under the sunlight and go dark at night.
4. easy installation in horizontal or vertical.
Outdoor Signage LCD Screen Parameter
| Item | 15.0'' high brightness LCD panel |
| Model | FS150-E10-B |
| Screen Size | 15.0 inches |
| Display Area | 304.1*228mm |
| Outline Dimenssion | 326.5*253.5*10mm |
| Panel Type | High brightness LCD with WLED |
| Configuration | RGB Vertical Stripe |
| Resolution | 1024(RGB)×768 , XGA |
| Brightness | 1000nits |
| Aspect Ratio | 4:3 |
| Constrast Ratio | 1000 : 1 (Typ.) (TM) |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Driver Elements | a-Si TFT-LCD |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Display Color | 16.7M 72% (CIE1931) |
| Display Mode | ADS, Normally Black, Transmissive |
| Interface Type | LVDS (1 ch, 8-bit) , Connector , 20 pins |
| Input Voltage | DC12V |
| Power | 18.8W |
| Weight | 1.3kg |
| Backlit Lifetime | 50000hrs |
| Operating Temp. | -20°- 70°C |
| Storage Temp. | -20°- 70°C |
Outdoor Signage LCD Screen Drawing
Outdoor Signage LCD Screen Scenario
Outdoor digital signage is much more effective than traditional billboards and other static forms
of outdoor advertising, Industrial grade outdoor signage LCD screen are widely been installed at:
1. Outdoor digital mune board; Use animations and videos to highlight specific products and
entice a customer’s cravings.
2. Digital billboard; A digital billboard outside your gas station captures a customer’s attention
and informs them of fuel costs and other important information.
3. Modern shopping malls; customers expect immersive and personalized experiences when
they shop.
4. Transportations; can post schedules, boarding information, and updates on outdoor signs.
5. Outdoor retail signs; The best thing about storefront digital signage is that it can accommodate
multiple messages from the same company, which is particularly helpful for promoting multiple
events or sales.
6. QSR, Drive thru system; Outdoor restaurant digital signs deliver fresh content to encourage
in-store purchases
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in Outdoor Signage LCD Screen LCD
panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages)
from the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your
requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg:
HDMI, VGA,DVI, USB...)+Touch optional.
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)
+fan system+temperature control board+housing.
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display
will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Outdoor Signage LCD Screen sample testing is acceptable, the price is negotiable for bulk
order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped with 2 weeks.
