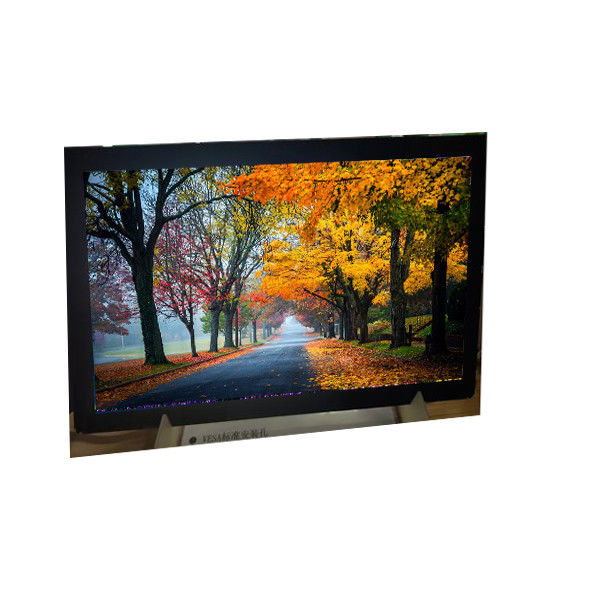

27 Inch Lcd Panel Open Frame Touch Screen Monitor 1000nits Digital Tin 110 Degree
  • 27 Inch Lcd Panel Open Frame Touch Screen Monitor 1000nits Digital Tin 110 Degree
  • 27 Inch Lcd Panel Open Frame Touch Screen Monitor 1000nits Digital Tin 110 Degree
  • 27 Inch Lcd Panel Open Frame Touch Screen Monitor 1000nits Digital Tin 110 Degree
  • 27 Inch Lcd Panel Open Frame Touch Screen Monitor 1000nits Digital Tin 110 Degree

27 Inch Lcd Panel Open Frame Touch Screen Monitor 1000nits Digital Tin 110 Degree

Place of Origin GuangDong, China
Brand Name Fengshi
Certification CE
Model Number FSKT270-E10-T
Product Details
Size:
27 Inch Touch Open Frame Lcd Display
Brightness:
1000nits
Resolution:
1920*1080pixel
Display Area:
527*296.4mm
Constrast Ratio:
1300:1 (Typ.) (TM)
Response Time:
14ms (Typ.)(G To G)
Viewing Angle:
178x178
Warrant:
1Year
Power Consumption:
18W
High Light:

27 Open Frame Touch Screen

,

Open Frame Touch Screen Monitor

,

open frame touch monitor

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
470-570 usd/piece
Delivery Time
7-14 work day
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
1000 Piece/Pieces per Month
Product Description



27 inch 1000nits digital screen with touch tin 110 degree lcd display






Description



1. High Visibility Under The Sunlight

With a great brightness of 2500/3000 nits. HD series clearly delivers contents and

attracts public attention, which is ultimate display for outdoor visibility.



2. Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light.

The brightness is increased in light for better visibility, while it is decreased in darkness

for efficient power management.



3. VESA Mounting, Embeded Installation

The open frame display is designed with VESA mounting holes, it can be installed at any

orientation, as well as in any housing or cabinet. Easy to make it a finished outdoor display.



4. High Tni 110℃ LCD

The industrial grade open frame display can choose a high Tni110C LCD open cell, it has

superior durability withstand the hard weather condition, and will be n0 black mura occurs

when it exposes under the direct sunlight.



5. Front IP66, Optical Bonded

The optically bonded lcd display has adopted a front protective glass with PCAP touch bond

the open cell and front glass. The front screen is sealed with IP66 design,which is an

essential feature for outdoor application.



6. Plug&Play

Open frame monitor with optical bonding, integrate the industrial grade power supply unit and

mainboard inside it makes the open frame display easy to install and support play and play.



Drawing







Scenario


Financial institutions:

banks, securities, funds, insurance companies, pawn shops, etc .;


Public places:

bookstores, exhibition halls, stadiums, museums, conference centers, talent markets, etc .;



Entertainment and leisure:

cinemas, fitness gyms, resorts, entertainment venues, foot baths, KTV bars,beauty salons,

golf courses, etc .;



Commercial institutions:

Western restaurants, fast food restaurants, supermarkets, chain stores, 4S stores,specialty

stores, star hotels, travel agencies, drug stores, etc .;



Industrial sites:

food processing equipment, machinery control, office automation equipment, automated

testing,automotive testing equipment, etc .;



Transportation place:

bus station, passenger station, subway, high-speed rail, airport, etc .;



Medical places:

hospitals, medical institutions, pharmacy chain institutions, etc.



Parameter



Specifications

FSKT270

PANEL

Screen Size

27inch open frame lcd display

Panel Technology

IPS,

Aspect Ratio

16:9

Native Resolution

1,920 x 1,080 (FHD)

Brightness

1,000 cd/m2

Contrast Ratio

1,300:1

Viewing Angle (H x V)

178 x 178

Surface Treatment

Hard coating (2H),

Reflection 2.0% (Max.)

Lifetime

50,000 Hrs Min.

Operation Hours

24 Hrs

Orientation

Landscape & Portrait

Front Glass

6mm AG/AR/Tempered Glass

Touch Function

Yes

CONNECTIVITY

Input

HDMI, VGA, USB, Audio

Output

/

External Control

RS232C Optional

PHYSICAL

SPECIFICATION

Bezel Color

Black

Bezel Width

34.5 mm (T/B), 34.5 mm (L/R)

Monitor Dimension

(W x H x D)

1010.2x 598.4x 89.0 mm

VESATM Standard

Mount Interface

400 x 250 mm, 8 x M6

ENVIRONMENTAL CONDITIONS

Operation Temperature

0~45C

Operation Humidity

10% to 80%

POWER

Power Type

Built-In Power

Power Supply

100-240 V~, 50/60 Hz

Power Consumption

Typ. / Max.

180 W

Smart Energy Saving

/

STANDARD

CERTIFICATION

Safety

/

EMC

CE

ACCESSORIES

Basic

Remote control(w/o battery),

AC power plug

WARRANTY

WARRANTY

18Month, Free spare parts,

Technical support




27 Inch Lcd Panel Open Frame Touch Screen Monitor 1000nits Digital Tin 110 Degree 0



27 Inch Lcd Panel Open Frame Touch Screen Monitor 1000nits Digital Tin 110 Degree 1



27 Inch Lcd Panel Open Frame Touch Screen Monitor 1000nits Digital Tin 110 Degree 2







FAQ








1.Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located

in Shenzhen.



2. Q: How long is the warranty?

A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from

the date of delivery.



3. Q: Do you provide ODM/OEM or customized service?

A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your

requirements. In order to support different customers, we are able to supply:

(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor

(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI,

VGA, DVI, USB...)+Touch optional

(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan

system+temperature control board+housing

(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.



4. Q: What brand of OC do you use?

A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each

display will pass through strict quality inspection.



5. Q:What certifications you have?

A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.



6.Q:What is the temperature when the screen surface goes black?

A: Normal grade goes black over 68℃;industrial grade goes black over 105 or 110℃.



7.Q: What is the MOQ?

A: Sample testing is acceptable, the price is negotiable for bulk order.



8.Q: When will you delivery?

A: High brightness LCD panel sample order shipped in 3days, bulk order shipped

within 2 weeks.
