Open Frame LCD Monitor
>
|
|
| Place of Origin | China |
| Brand Name | Fengshi |
| Certification | FCC / CE/ROHS |
| Model Number | FSKT170 |

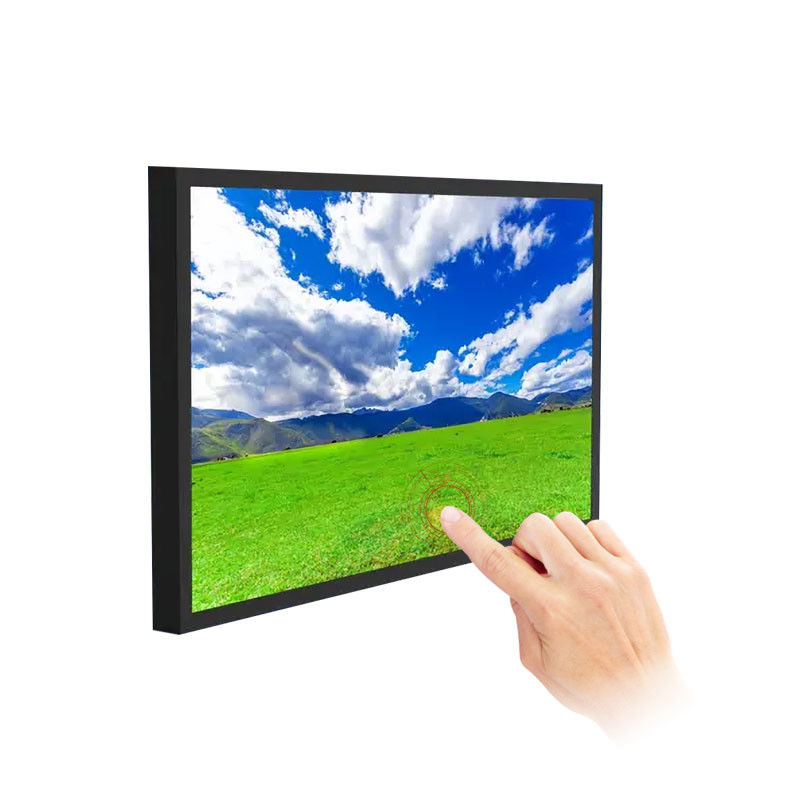

17 Inch 500 Nits Open Frame 1024*1280Pixel Android Industrial LCD Display
Touch Screen Lcd Monitor
Product Description
Open frame monitors are display devices that are widely used in industrial and commercial
applications. These monitors do not have an enclosure or casing, but instead, they are
designed to be integrated into custom enclosures or larger systems.This feature makes them
ideal for space-saving and customized installations where flexibility and versatility are crucial.
Open frame monitors come in various sizes, resolutions, and technologies.
Benefits of Open Frame Monitors
● Flexible design allows it to easily fit into pre-existing structural housings
● Customize enclosures for custom projects or specific industry requirements
● Rugged durable metal construction and heavy-duty steel
● Mounting solutions for panel / VESA / wall mount
● Suited for a wide range of industrial and commercial applications
Parameter
| Specifications | FSKT170 | |
| Screen Size | 17inch open frame industrial lcd display | |
| Panel Technology | IPS, | |
| Aspect Ratio | 16:9 | |
| Native Resolution | 1024*1280Pixel | |
| Brightness | 500 cd/m2 | |
| Surface Treatment |
Hard coating (2H), Reflection 2.0% (Max.) |
|
| Lifetime | 50,000 Hrs Min. | |
| Operation Hours | 24 Hrs | |
| Orientation | Landscape & Portrait | |
| Front Glass | 6mm AG/AR/Tempered Glass | |
| Touch Function | Yes | |
| Input | HDMI, VGA, USB, Audio | |
| Output | / | |
| External Control | RS232C Optional | |
| Bezel Color | Black | |
| Operation Temperature | 0~45C | |
| Operation Humidity | 10% to 80% | |
| Power Type | Built-In Power | |
| Power Supply | 100-240 V~, 50/60 Hz | |
Applications of Open Frame Monitors
● Digital Signage / Kiosks / Self-Service
● Point of Sale (POS) Systems
● ATM Machines / Vending Machines
● Industrial Monitoring Applications / Surveillance Systems
● Food Processing Plants / Manufacturing Facilities
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located
in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from
the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your
requirements. In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI,
VGA, DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan
system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each
display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped
within 2 weeks.
